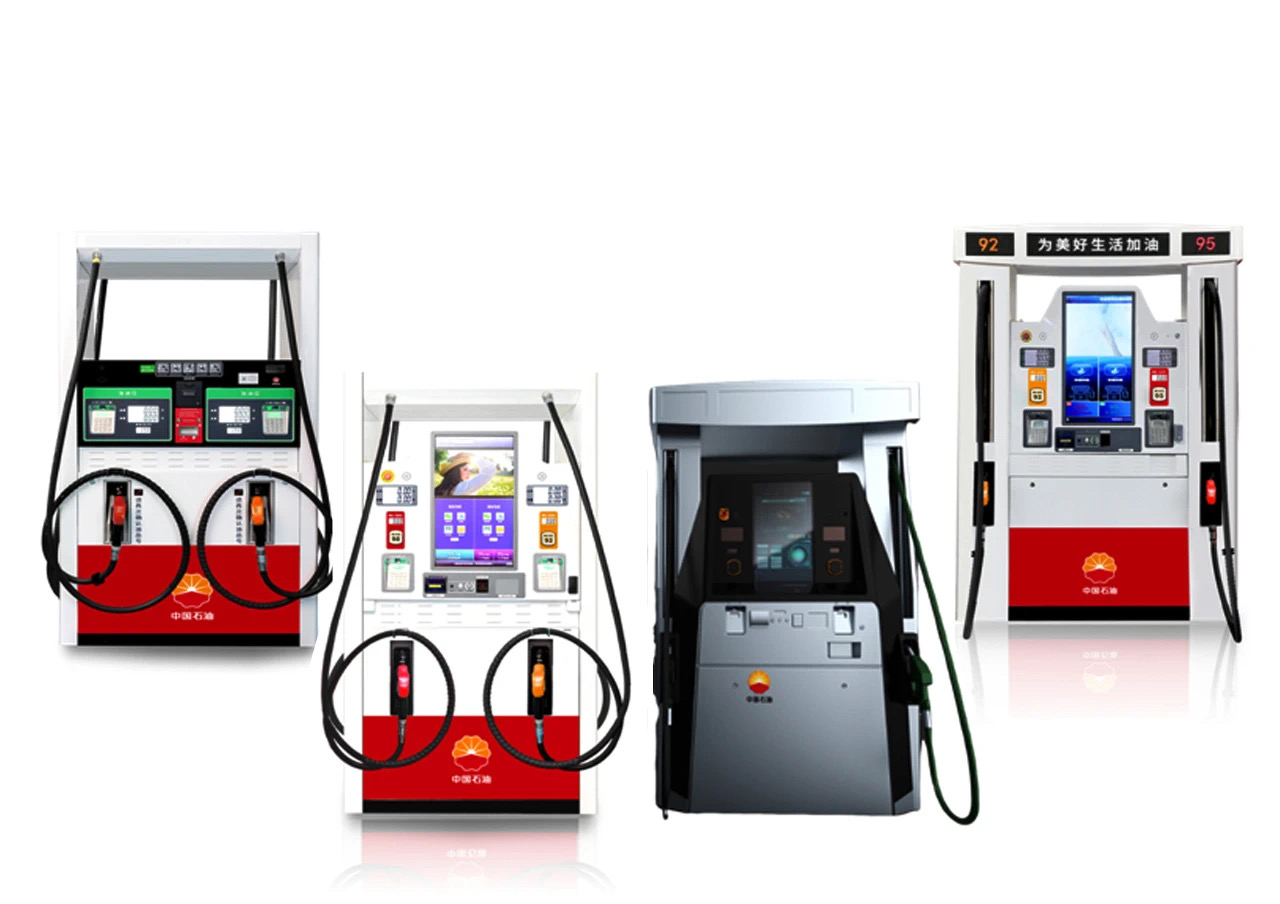

Intelligent Fuel Dispenser Products

The intelligent fuel dispenser features a simple and elegant appearance, compact and refined design, with a popular international gantry top style. It is practical, user-friendly, and the entire series can be equipped with a hose elongator and high-performance mainboard. The product is solid and durable, with a long service life. It can be configured with a top box LED large screen and a 32-inch large screen on the body for interactive functions, supporting facial recognition, license plate payment, and visual voice intercom to improve traffic efficiency.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Configuration

Features include a QR code scanner, high-precision meter, direct-coupled gear pump, anti-cheating encoder, explosion-proof motor, explosion-proof solenoid valve, anti-static oil product confirmation button, metal keyboard, anti-cheating, dual-interface card reader, emergency stop button, voice intercom extension, self-sealing fuel nozzle, anti-static oil delivery hose, thermal paper receipt printer, LED backlight large screen, license plate payment, ETC contactless payment function, and 32-inch smart interactive touch screen.

Product Parameters

Flow rate range:	(5-50)L/min
Maximum allowable error:	±0.30%
Inlet pipe diameter:	38mm
Ambient temperature:	-20°C to +55°C; for high-altitude areas: -45°C to +55°C
Power supply voltage:	AC380V/AC220V(-15%,+10%),(50±1)Hz
Allowable suction lift:	5m
Noise	≤70dB(A)
Single count range:	Amount: 0.00–9999.99 yuan Quantity: 0.00–9999.99 liters (or kilograms)
Unit price setting range:	0~99.99 yuan/liter
Cumulative count range:	Amount: 0.00–99999999.99 yuan Quantity: 0.00–99999999.99 liters (or kilograms)
Explosion proof sign:	Ex d ib mb llA T3 Gb
