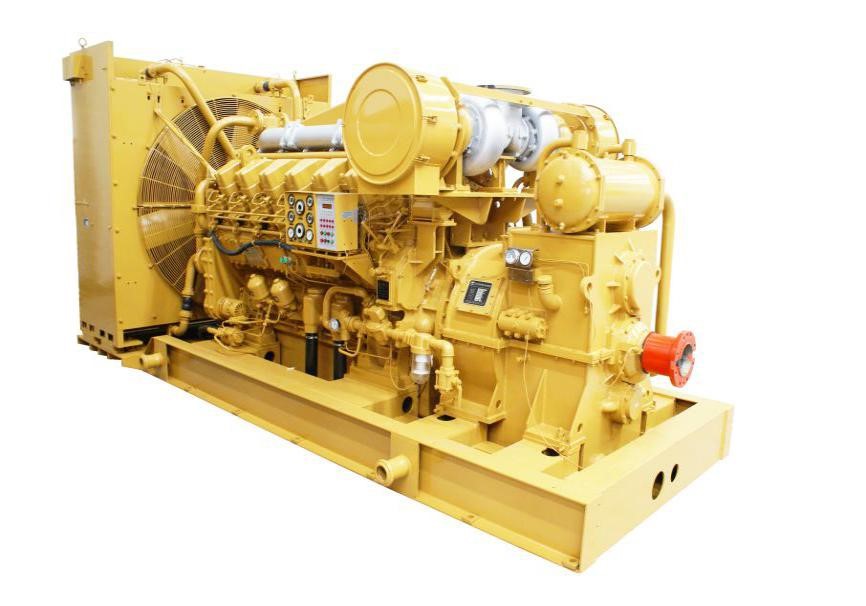

The 3000 Series Diesel Engine

3000 series diesel engine is a new generation of diesel engine developed by Jichai to meet the needs of the increasingly developing petroleum industry and improve the advancement and reliability of drilling equipment in China. This type of diesel engine is developed on the basis of jichai 6000 series diesel engine and draws on the advanced structure and technology of foreign diesel engines. Its power and economic indexes have been greatly improved, and the main performance indexes have reached or are close to the current international advanced level.

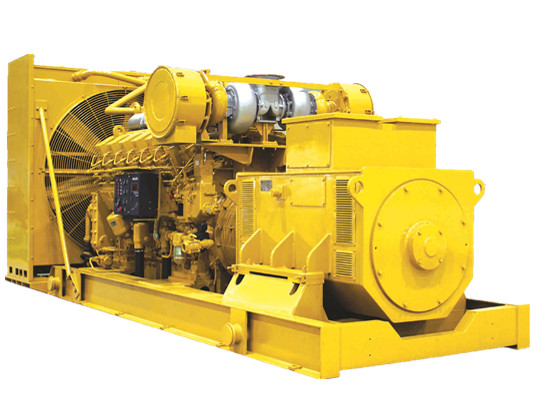

The 3000 series diesel engine can meet the power demand of 4000 to 7000 m mechanical drill and electric drill. It can be installed in the same chassis with the torque converter and coupling device to drive the drilling rig or mud pump. It can also be used to match the single and double supporting generators to form the power station and to be used for the power of the fire pump and flood control pump.

Contact Now E-Mail Telephone WhatsApp
Product Details

3000 series diesel engine is a new generation of diesel engine developed by Jichai to meet the needs of the increasingly developing petroleum industry and improve the advancement and reliability of drilling equipment in China. This type of diesel engine is developed on the basis of jichai 6000 series diesel engine and draws on the advanced structure and technology of foreign diesel engines. Its power and economic indexes have been greatly improved, and the main performance indexes have reached or are close to the current international advanced level.

1. Supporting machine of the 3000 series diesel engine

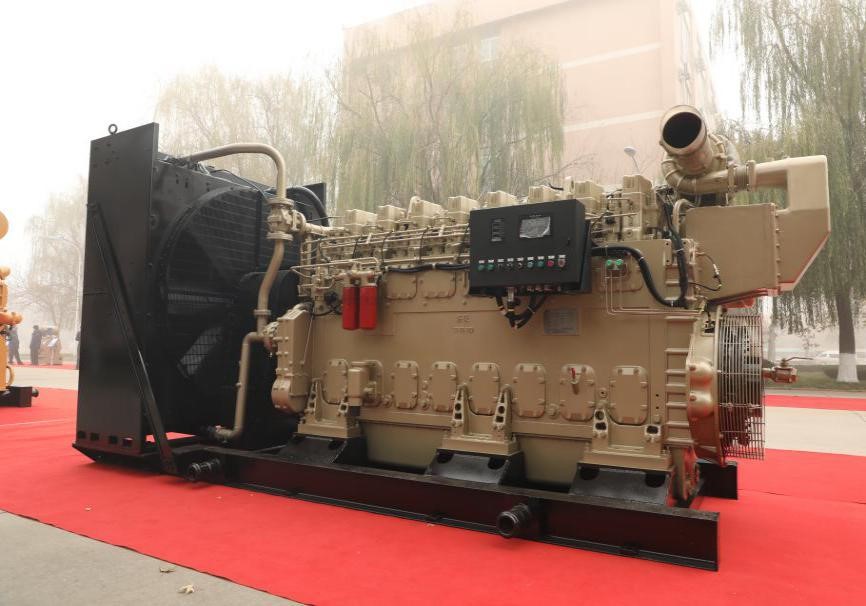

The 3000 Series Diesel Engine1679390939785671.jpg

model

oil injection system

mode of speed regulation

number and arrangement of cylinders

cylinder bore,mm

piston stroke,mm

power rating,kW

rated rotation speed, at r/min

total piston displacement, L

fuel consumption rate, g / kW.h

oil consumption rate, g / kW.h

oil sump capacity L

outline dimension mm

weight kg

A12V190PZL

monoblock pump

hydraulic or electrohydraulic speed governor

12 Cylinder, Type V

190

215

1026

1500

73.15

≤205

≤1.0

200

4130×2250×2738

11000

A12V190PZL-1

846

1200

73.15

≤205

≤1.0

200

A12V190PZL-2

756

1000

73.15

≤205

≤1.0

200

A12V190PZL-3

936

1300

73.15

≤205

≤1.0

200

B12V190PZL

1140

1500

73.15

≤202

≤1.0

270

4189×2345×2636

11000

B12V190PZL-1

970

1200

73.15

≤202

≤1.0

270

B12V190PZL-2

780

1000

73.15

≤202

≤1.0

270

B12V190PZL-3

1044

1300

73.15

≤202

≤1.0

270

2. Coupler unit, torque converter unit of the 3000 series diesel engine

unit model

power rating kw

speed r/min

engine type

coupler / torque converter model number

center height

A12V190PZL-3/O

1100

1300

A12V190PZL-3

YOZJ750

760

CO1100-3/15

A12V190PZL-O

1200

1500

A12V190PZL

CO1200/20

A12V190PZL-1/O

1000

1200

A12V190PZL-1

CO1000F-1/24

BH12V190PZL-0

1360

1500

BH12V190PZL

CO1360F/33

BH12V190PZL-3/0

1100

1300

BH12V190PZL-3

CO1100-3/20
