Fuel dispensing robot

It has many advantages such as dual-side fueling, excellent light resistance, a wide range of vehicle parking, and modular structure. Users can complete all related operations such as ordering, fueling, checkout, and invoicing via an APP inside the vehicle. Currently it supports 48 vehicle models, with more models being added continuously.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Introduction

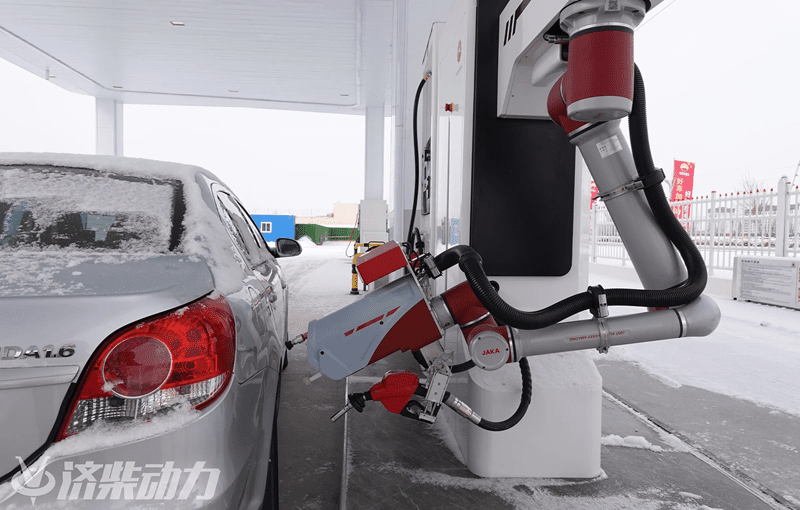

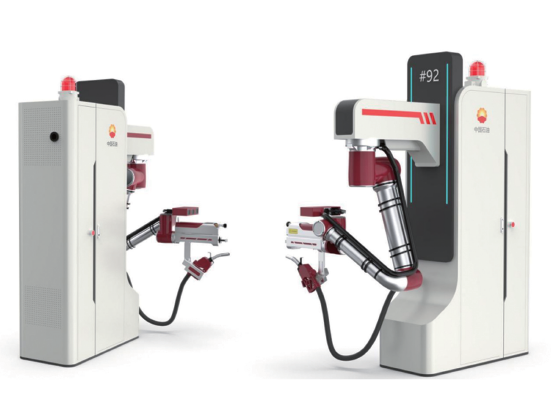

The fuel dispensing robot is a high-tech device that completely eliminates manual operation for automating fuel dispensing for household vehicles. The JCJQR-001 fuel dispensing robot independently developed by Jichai features a beautiful appearance and low space occupancy, and can be installed next to existing fuel dispensers.

Product Parameters

Robot model:	JCJQR-001
Maximum power (W)	1200
Rated voltage (V):	220
Maximum load (Kg)	16
Air supply pressure (MPa)	0.2-0.8
Product positive pressure range (Pa)	120-500
Minimum purge time (min)	20
Minimum purge flow rate (L/min):	10
Robot dimensions (mm):	1849×618×2460
Equipment weight (kg):	720
