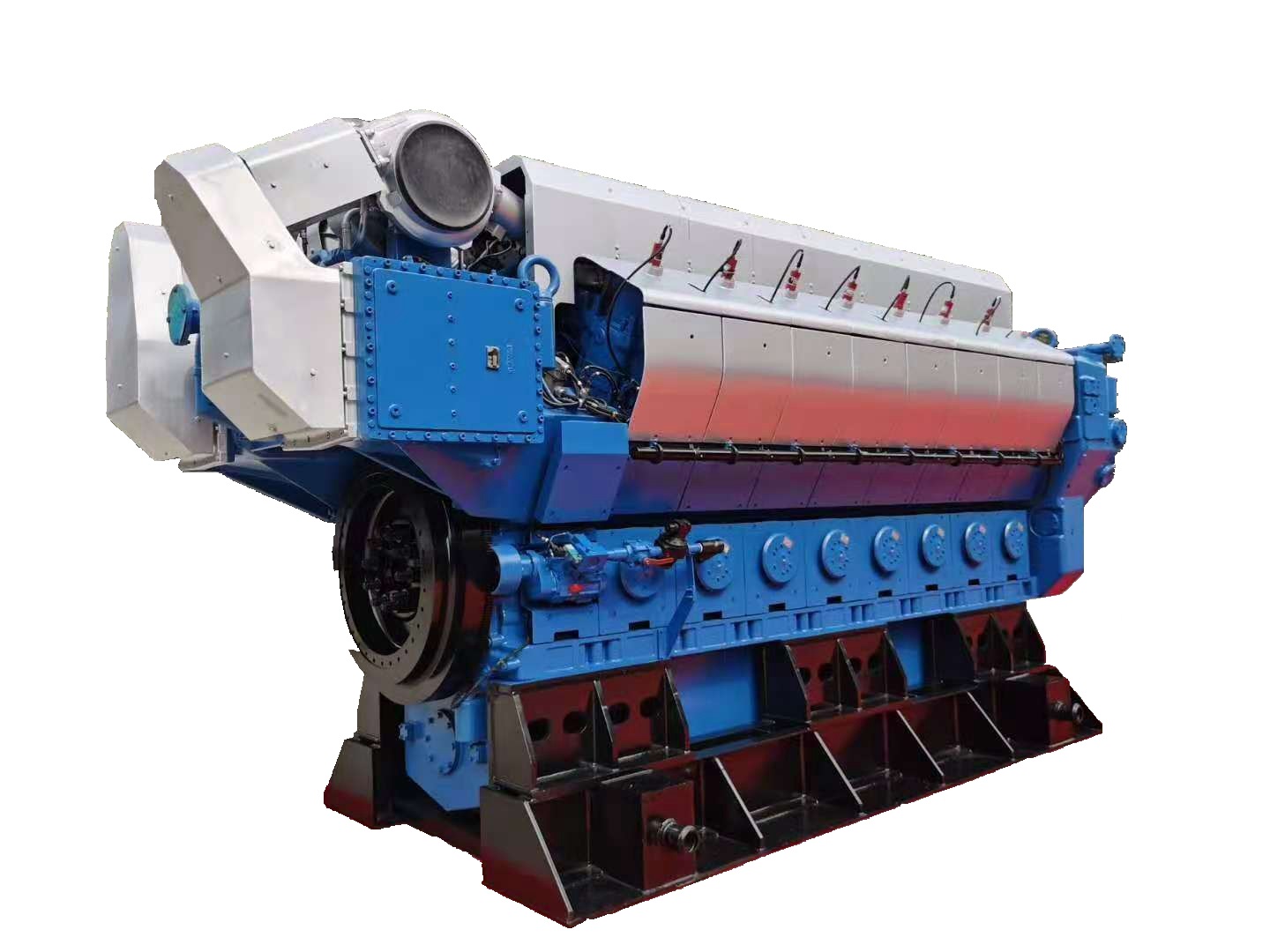

4000KW Gas Generator

Advantage

The 2632 series high power natural gas engine have the following characteristic: high pressure, high power, high efficiency, low emission, green, environment protection and other characteristics. The engine’s gas consumption rate is 8500kJ/kw▪h, thermal efficiency is greater than 44%.


  Contact Now E-Mail Telephone WhatsApp
Product Details

Production Characteristic

▪λ accurate control ( Jichai: up to 2.3) lean burning;

▪High efficiency (Jichai test level: up to 44%), security (Installation of explosion- proof devices, double-walled gas pipes and oil mist detectors for each system);

▪High pressurization, strong Miller, low emissions;

▪Knock control technology and explosion pressure monitoring (or in-cylinder combustion temperature)

▪Multipoint Electrical Control ( Port Injection); engine management system

▪The optional control of the intake air amount and the intake time of the main combustion chamber and the pre-chamber;

▪Load balance ( According to the cylinder rear temperature control system online correction);

▪High turbocharged, two stage cooling;

▪Self-cleaning filter technology;

▪The filter element adopts the metal filter element and can realize automatic cleaning without replacing the filter element. It can not only guarantee the oil filter requirements of th engine, but also extend the service life, reduce the use cost and maintenance labor intensity.

Genset Model

4000GF10-T

3600GF-T

Alternator model

Brush-less Excitation, Automatic Voltage Regulation

Rated power

4000kW

3600kW

Rated voltage

6300V/10500V/13800V

Rated frequency

50Hz

60Hz

Rated power factor

0.8

Engine Model

16V 26/32

Type

Four strokes, water cooling, turbocharged intercooling, pre-burning zone, multi-point injection, compression ratio control

No. of cylinder

16

Bore

260mm

Stroke

320mm

Single cylinder displacement

17L

Rated speed

1000r/min

900r/min

Rated power

4200kW

3780kW

Gas consumption

≤8600kJ/kW.h

Oil consumption

≤0.3g/kW.h

Cooling type

Open type-cooling tower/Closed type-Horizontal Radiator

Starting method

Air starting

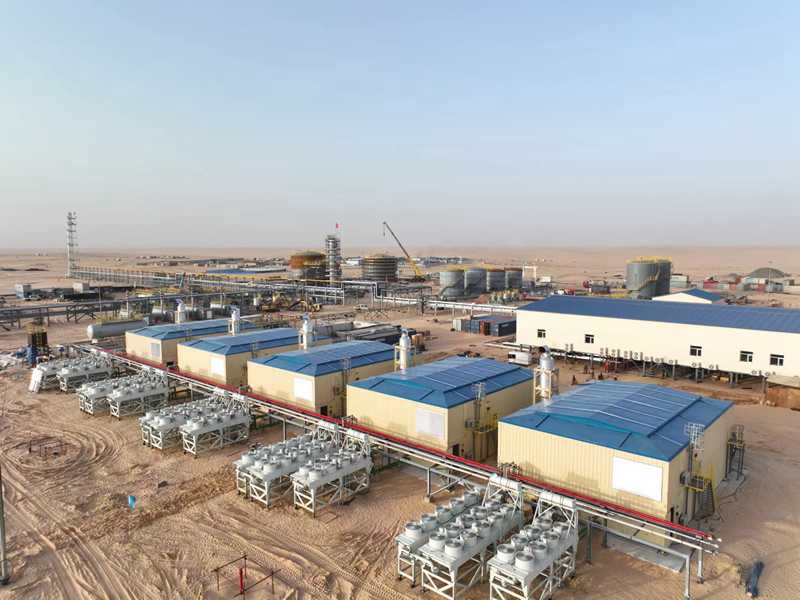

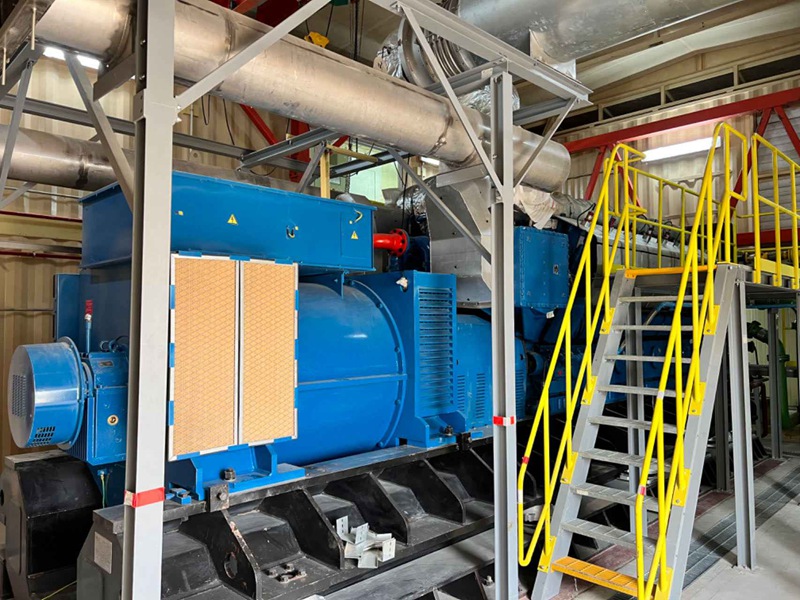

Application Case
