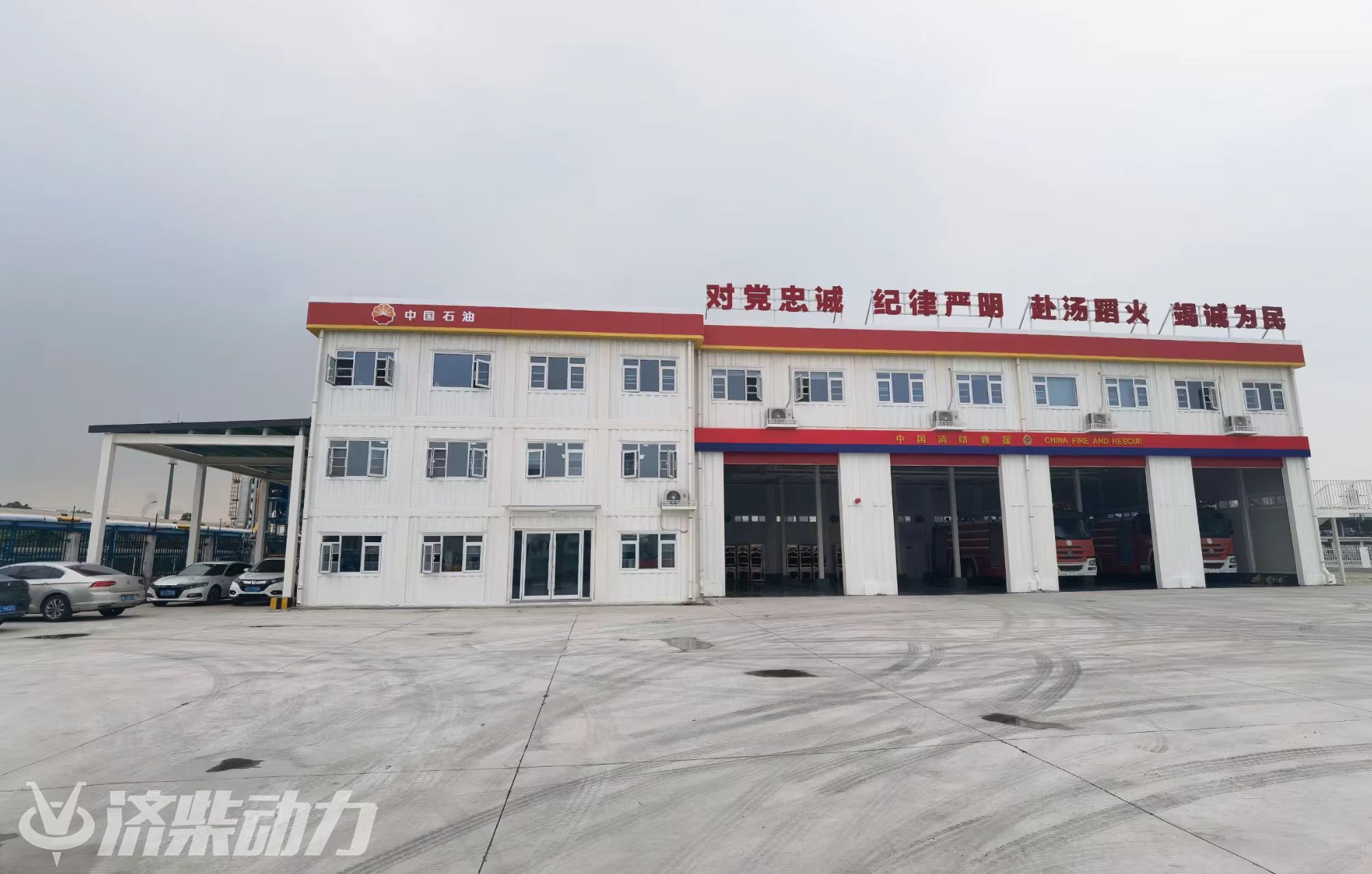

Modular Fire Station

The modular fire station features a modular structure, offering advantages such as convenient transportation, fast loading and unloading, simple installation, minimal onsite workload, short construction cycles, and minimal impact on construction sites. The main structure of the modular fire station can integrate functions such as accommodation, command, garage, kitchen, bathroom, and recreation, with expansion options as needed. It is designed, manufactured, and assembled using container-based modules.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product features

Superior structural mechanics performance, seismic resistance: Level 8, wind resistance: Level 12. Each module has a complete independent structure, and external dimensions meet provincial highway transportation standards. Can be repeatedly assembled under different site conditions, saving energy and being environmentally friendly, reducing traditional construction waste by 90%. Require a small floor area, with strong adaptability for site selection, typically located near key existing prevention and control facilities. Short construction period, with the entire project cycle lasting only three months.

Function configurations

	Level 1 Station	Level 2 Station	Level 3 Station
Number of garages	≥6	≥4	≥2
Floor area	≥1375 m²	≥510 ㎡	≥289 ㎡
Module area	≥2935 ㎡	≥1167㎡	≥540 ㎡
Net height of garage doors	5m	4.5m	4.5m
Wall heat transfer coefficient	≤0.82W/㎡.℃	≤0.82W/㎡.℃	≤0.82W/㎡.℃
Applicable ambient temperature	≥-30℃	≥-30℃	≥-30℃
Structural heat transfer coefficient	0.41~0.82W/㎡.℃	0.41~0.82W/㎡.℃	0.41-0.82W/㎡.C
On-duty personnel	56–90 people	26–32 people	10–16 people
Compatible vehicles	≤10×4×5m(LxWxH)	≤10×4×4.5m(LxWxH)	<10×3×4.5m(LxWxH)
Stair design	Open (southern regions) / enclosed (northern regions)	Open (southern regions) / enclosed (northern regions)	Open (southern regions) / enclosed (northern regions)
