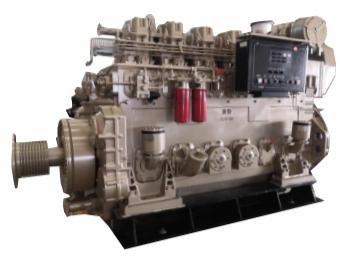

L6190 Series Marine Diesel Engine(540-750kw)

The products cover a wide range of power, can meet the needs of customers in different power segments, products have passed the CCS certification.


Contact Now E-Mail Telephone WhatsApp
Product Details

Technical Characteristic

Engine Model

L6190ZLC-2

L6190ZLC-1

L6190ZLC

Type

Four strokes, In-line, Turbocharged and inter cooling, Water-cooled,Direct injection

Rated power

625kw/850hp

750kw/1020hp

540kw/735hp

Speed

1000rpm

1200rpm

900rpm

Bore

190mm

Stroke

255mm

Total displacement

43.38L

Compression ratio

14.5:1

Minimal stable speed

540kw

540kw

540kw

Fuel consumption

≤188g/kW.h

Oil consumption

≤0.9g/kW.h

Starting method

Electric starting or air starting

Outline size(LxWxH)

3144x1571x2246mm

Net weight

7200kg

Our Company


Our Factory

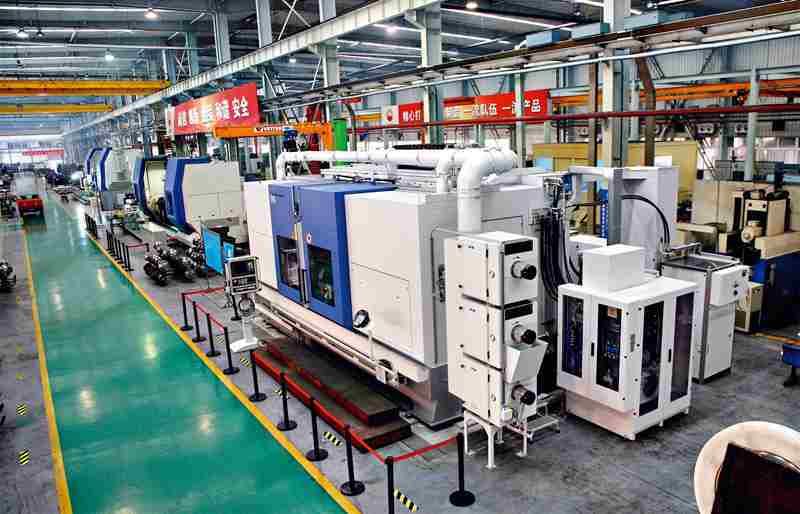

曲轴加工线 (3) Linea de cigueñal.jpg

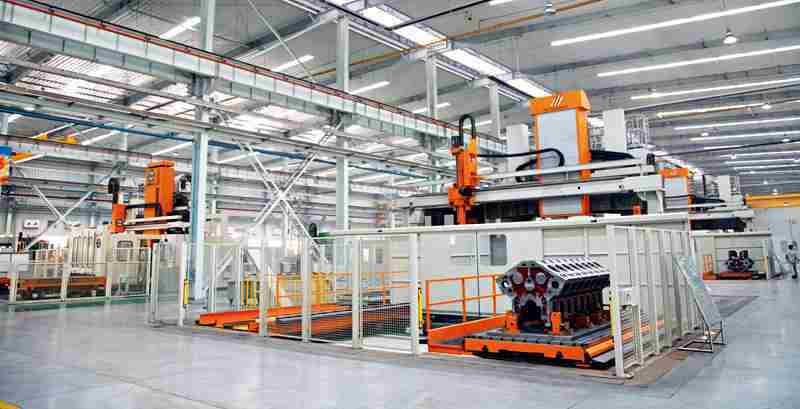

机体加工 (1) Linea de bloque.jpg

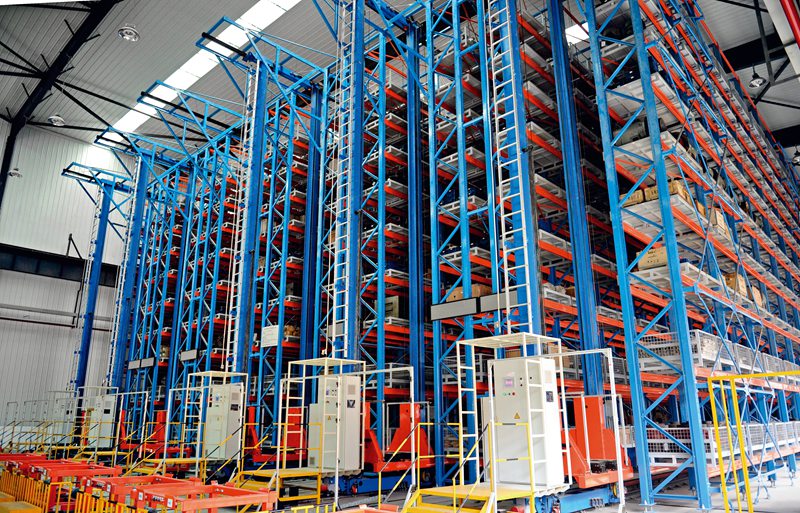

自动化仓储中心 ALMACEN.JPG
