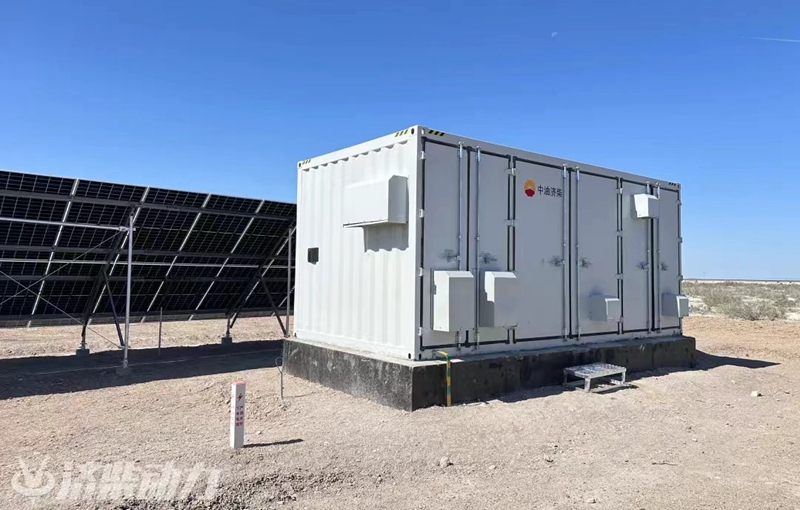

Inverter-control Integrated Cabinet

The system is mainly composed of the PV energy storage inverter, intelligent control device of pumping unit, the energy storage system, etc. The all-in-one machine mainly highly integrates PV power generation, energy storage, load power supply and intelligent control.

Contact Now E-Mail Telephone WhatsApp

Product Details

Function Features

Highly efficient conversion; integrated design; intelligent management; environmental protection and sustainability;

Technical Parameters

No.	Name	Technical parameters
1	Rated voltage of system	1100VDC
2	Rated charging and discharging current	50〜400A
3	Maximum PV input voltage	1000VDC
4	MPPT tracking range	200〜1000VDC
5	Number of MPPT tracking circuits	6
6	Battery charging and discharging voltage	420〜850VDC
7	Energy storage capacity	62.59-372kWh
8	Conversion efficiency	>95%
9	Working temperature	-20°C〜+50°C
10	Intelligent variable frequency control device	30/37/45kW
