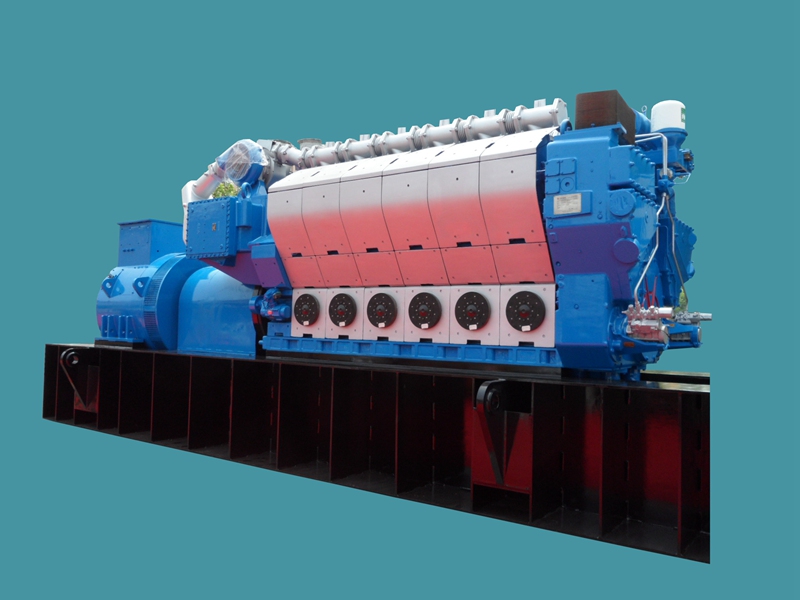

Diesel Genset (2400-3900kW)

                Product Advantage
Series 26/32 engine is developed by Jichai in cooperation with AVL Of Austria which Jigai has all intellectual property rights of high pressurization, high power, low fuel consumption, high reliability and long life of medium-speed engines. All the technical indexes have reached the international advanced level。 It uses the world's leading high pressure common rail fuel system, greatly reducing camshaft size, dual electronic control system, high supercharging technology super high supercharging technology,MPC exhaust system.Strong Miler cycle, double stage intermediate cooling technology.Self-cleaning filtration technology greatly improves engine performance and emissions.
Technical Characteristic
| Genset model | 2400GF | 2800GF | 3200GF | 3900GF |
| Engine model | 9L2632 | 12V26/32 | ||
| Alternator model | The standard configuration is CSIC TFC4 Series, which can be selected according to customers' requirements | |||
| Power | 2400kW | 2800kW | 3200kW | 3900kW |
| Speed | 900r/min | 1000r/min | 900r/min | 1000r/min |
| Voltage | 480/13800V | 400V/6300V/10500V | 480/13800V | 400V/6300V/10500V |
| Frequency | 60Hz | 50Hz | 60Hz | 50Hz |
| Power Factor | 0.8 | |||
| Dimension | 8800x2920x3535mm | 11392x2820x3600mm | ||
| Weight | 59000kg | 62000kg | ||
