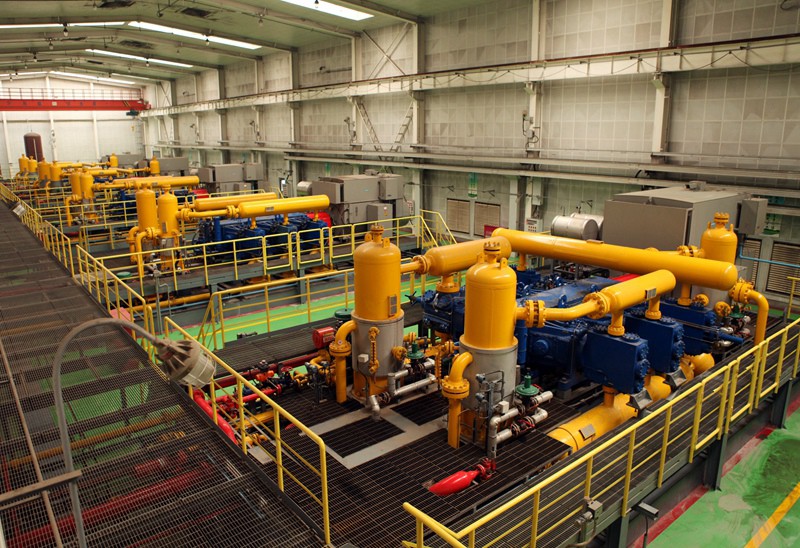

D Series Compressor

Performance Feature

Adopting a symmetrical balanced structure design, with low vibration and low noise; Equipped with a patented wide airway natural cooling cylinder, with a simple structure and low resistance loss; High speed and small volume; Specially designed for high-speed compressors with non-metallic mesh valves, long service life and high efficiency; Embedded intelligent control system, capable of remote monitoring and unmanned operation; Equipped with sulfur resistant design and manufacturing technology.

Contact Now E-Mail Telephone WhatsApp

Product Details

Technical characteristic

The D series is an electric motor driven split type compressor. It is a multi row high-speed short stroke symmetrical balanced compressor driven by a gas (fuel) engine/electric motor. It has a variety of fixed, mobile, and other skid-mounted structures, with an overall skid-mounted design and high integration. Widely used in gas lift production, oil and gas processing, light hydrocarbon recovery, pressurized gathering and transportation, and gas storage and injection.

Power range	10～7500kW
Gas displacement	0.1～500×104Nm3/d
Maximum exhaust pressure	52MPaG
Application area	It can be used for gas collecting, gas production and gas injection (gas storage), oil and gas treatment and processing, gas lifting, light hydrocarbon recovery, natural gas liquefaction, refining, gas drilling and pipeline pressure testing.
