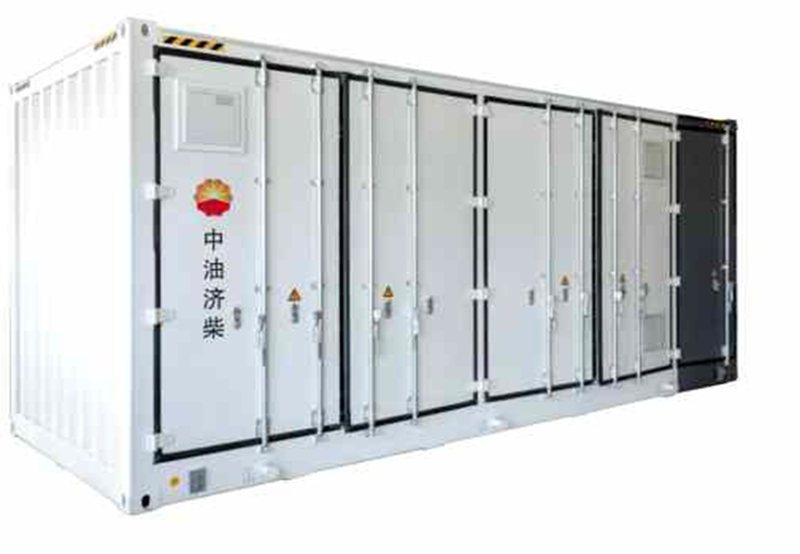

Container Energy Storage System

Product introduction

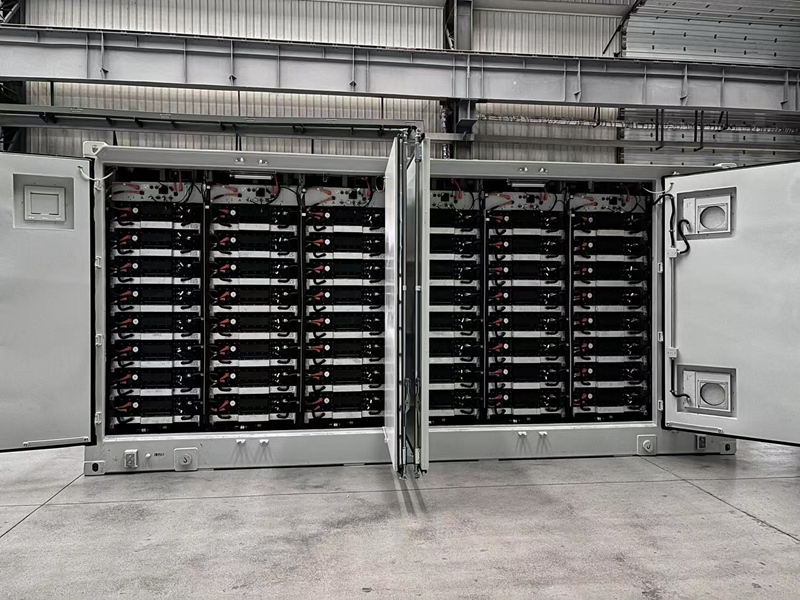

280Ah/314Ah/587Ah cells are adopted for the products of centralized lithium iron phosphate battery energy storage system. The single cabinet capacity of air-cooled battery compartment is 1.5 - 3.35 MWh, and the single cabin of liquid cooling system can reach 2 - 6 MWh. It is equipped with all-in-one machine of converter and booster, which meets the requirements of 0.25C - 1C charge and discharge rate, and features high safety, long service life and low cost. The product is suitable for the supporting energy storage systems of new energy power stations, and can be applied to large-scale energy storage systems on the power generation side and the power grid side. The energy storage battery system integrates battery module, high-precision BMS management system, lighting, intelligent temperature control and fire protection module, and adopts skid-mounted structure design. The protection level of the whole machine can reach IP55, and it supports the voltage level of 1500V/1000V, which meets the multi-scene applications such as peak regulation on new energy generation side and power grid side. It is suitable for PCS equipment with power level of 1250kW/1725kW/2500kW, compatible with the configuration schemes of 2-h, 3-h and 4-h energy storage system, capable of performing core functions such as peak shaving and valley filling, smooth power output and dynamic capacity increase, supports coordinated operation with photovoltaic and wind power systems, and provide diversified energy management services such as emergency power backup, frequency modulation and peak regulation.

Function Features

Applicable Scenarios

Large-scale centralized photovoltaic and wind power, distributed photovoltaic and wind power, power auxiliary service, peak-valley arbitrage, power capacity increase.
