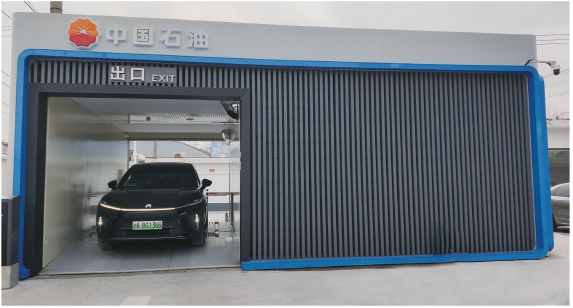

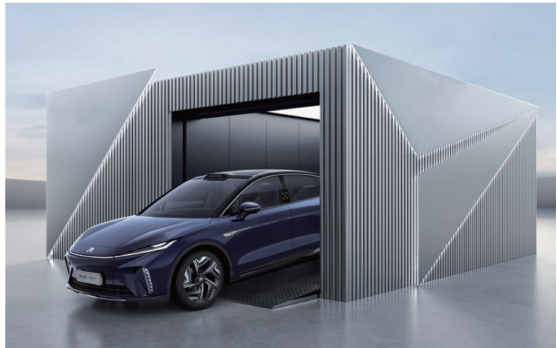

Automated battery swapping station

The automatic battery swapping station is a high-tech new energy device for automatically replacing electric vehicle batteries. Jichai collaborates with SEPT New Energy Technology Co., Ltd. to develop three series of products: HD-1 single-channel single-compartment, HD-2 single-channel dual-compartment, and HD-3 dual-channel. These products offer higher safety, shorter battery replacement times, and more efficient charging.

Contact Now E-Mail Telephone WhatsApp

Product Details

Application fields

They can be applied in high-traffic areas such as gas stations, large charging stations, and highway service areas to provide rapid battery-swapping services for electric vehicles.

Technical Parameter

Station Categories	HD-1 Single-Channel Single-Compartment	HD-2 Single-Channel Dual-Compartment		HD-3 Dual-Channel Tri-Compartment
Number of batteries (units)	10	20		30
Maximum vehicle services in 24 hours (times):	240	480		720
Maximum power of the station (kW):	500/650	950/1100/1250		1900
Station dimensions (L/W/H):	7m6.9m3.4m	7m8.7m3.4m		7m12.1m3.4m
Covered vehicle models	Supported models for cube battery platform
Battery swap cycle (s):	150		90
Battery swap success rate:	>99.9%
