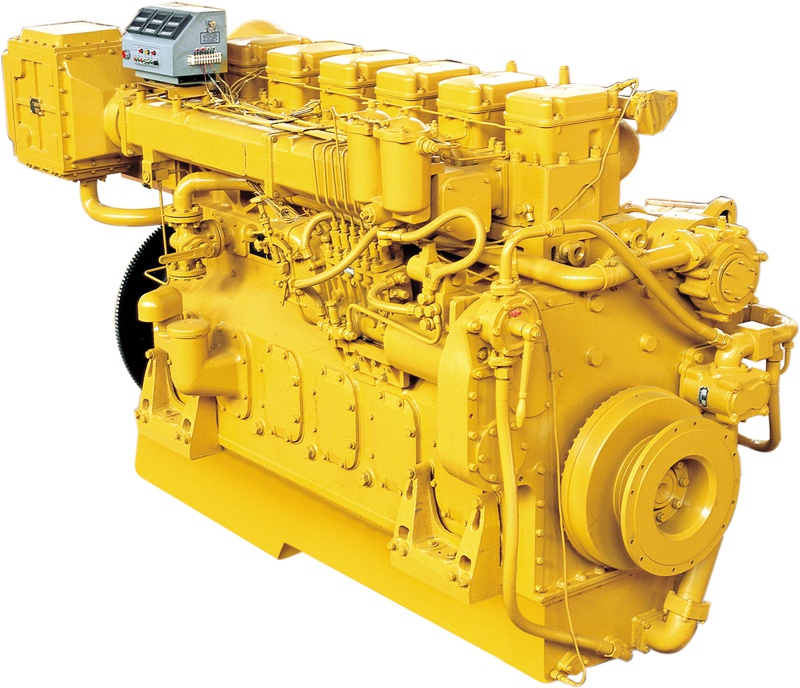

6190 Series Diesel Marine Engine (330-450KW)

The products cover a wide range of power, can meet the needs of customers in different power segments, products have passed the CCS certification.

Contact Now E-Mail Telephone WhatsApp
Product Details

Technical Characteristic

Engine Model

6190ZLC-2

6190ZLC-1

6190ZLC-3

6190ZLC

Type

Four strokes, In-line, Turbocharged and inter cooling, Water-cooled,Direct injection

Rated power

330kw/450hp

400kw/540hp

400kw/540hp

450kw/610hp

Speed

1000rpm

1200rpm

1300rpm

1450rpm

Bore

190mm

Stroke

210mm

Total displacement

35.73L

Compression ratio

14:1

Minimal stable speed

400kw

540kw

585kw

650kw

Fuel consumption

≤204g/kW.h

Oil consumption

≤1.2g/kW.h

Starting method

Electric starting or air starting

Outline size(LxWxH)

2990x1243x1763mm

Net weight

3960kg

Our Product


Our Company


Our Factory

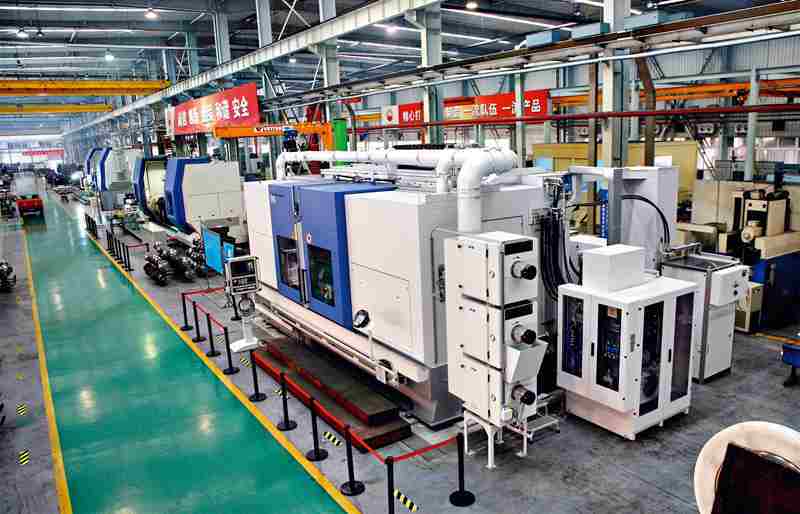

曲轴加工线 (3) Linea de cigueñal.jpg

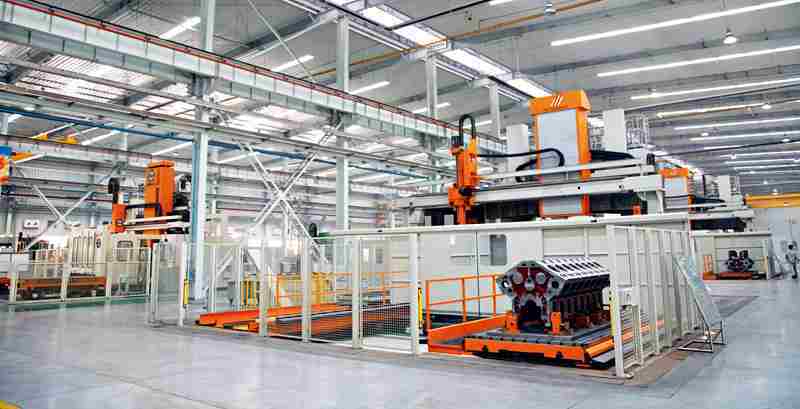

机体加工 (1) Linea de bloque.jpg

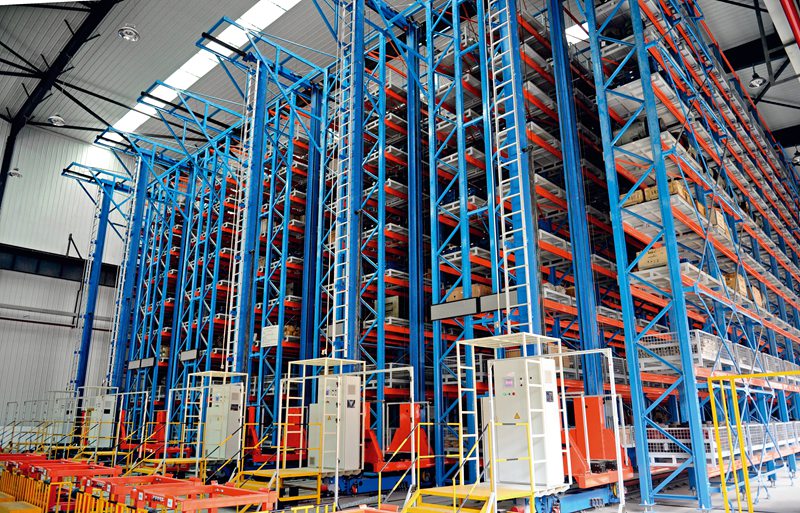

自动化仓储中心 ALMACEN.JPG
